| Brand |
Echo |
| Engine Type |
2-stroke |
| Engine Displacement (cc) |
50.2 |
| Net Rated Power Output |
2.16kW |
| Start Method |
Recoil |
| Ignition System |
CDI |
| Start Assist System |
ES-start |
| Carburettor |
Diaphragm |
| Fuel Tank Capacity (L) |
0.69 |
| Fuel Consumption |
1.23l/h at maximum engine power |
| Gear Reduction Ratio |
1.33 |
| Brush Cutter Blade |
3 tooth metal blade, EA-P021-014320 |
| Nylon Line Head |
Double line feed head, DS-5 M10L / EA-X047-000221 DS-5 |
| Outer Shaft Diameter |
28mm |
| Drive Shaft Diameter |
8mm |
| Handle Type |
Cowhorn |

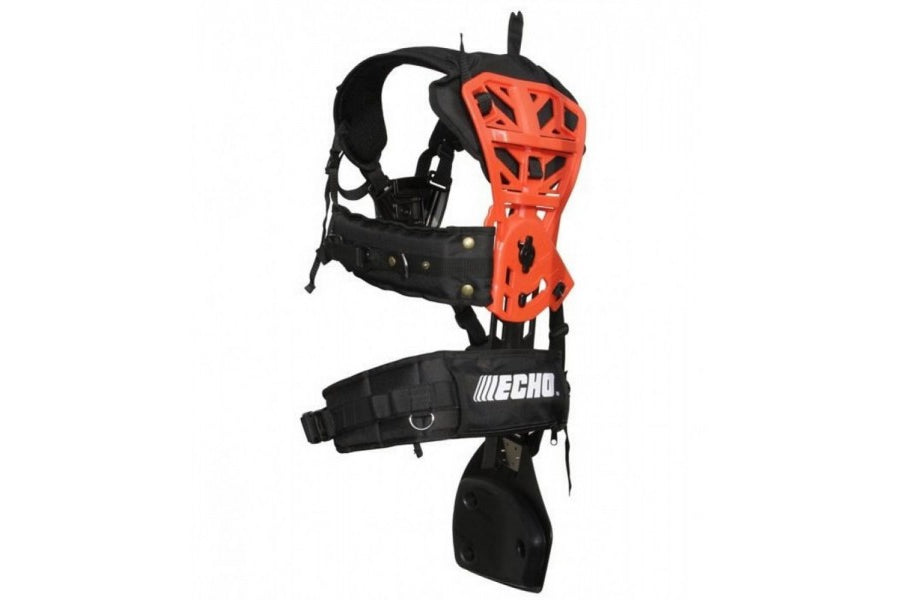

| Harness |
ERGO-Pro harness Included |
| Vibration - Grass Trimmer Attachment |
Left handle - Blade : 3.4m/s / Nylon line head: 3.0m/s
Right handle - Blade: 3.4m/s / Nylon line head: 2.7m/s |
| Sound and Noise Data |
Sound pressure level - Blade: 98.2dB(A) / Nylon line head: 97.6dB(A)
Sound power level - Blade: 113.2dB(A) / Nylon line head: 111.6dB(A) |
| CO² |
825g/kW.h |
| Assembled Dimensions |
Length (without cutting head): 1860mm |
| Weight (kg) |
9 |
| Warranty |
Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days) |
